Deluxe Fish Cleaning Table CAD Weldment Drawings
.

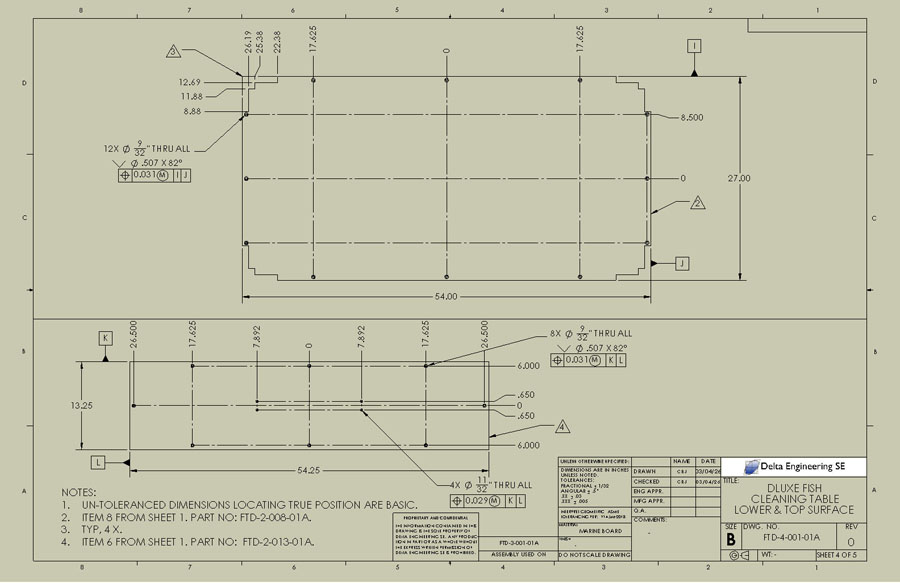

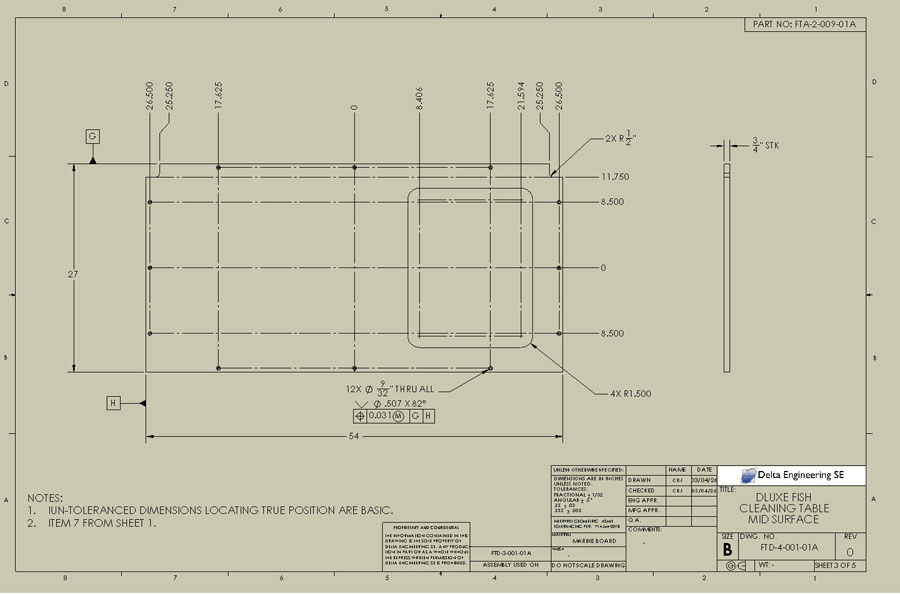

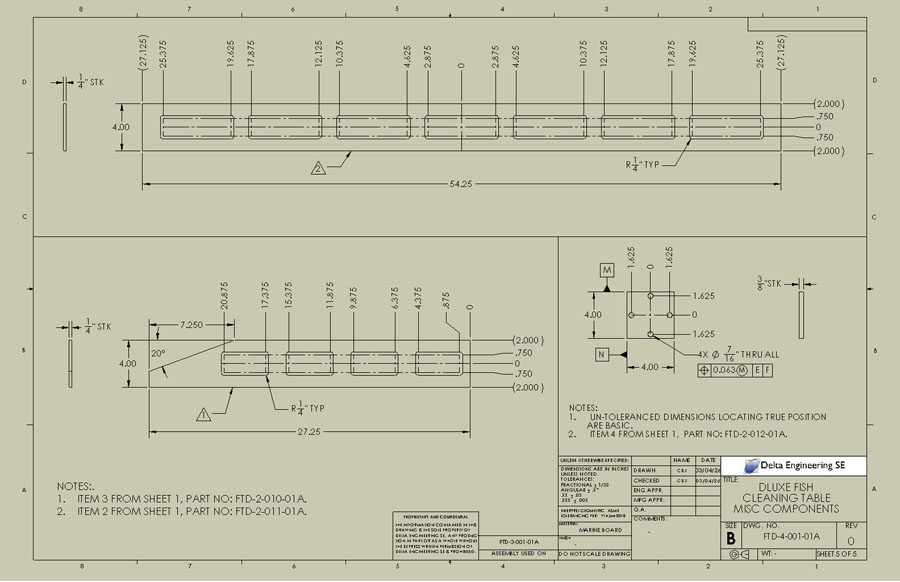

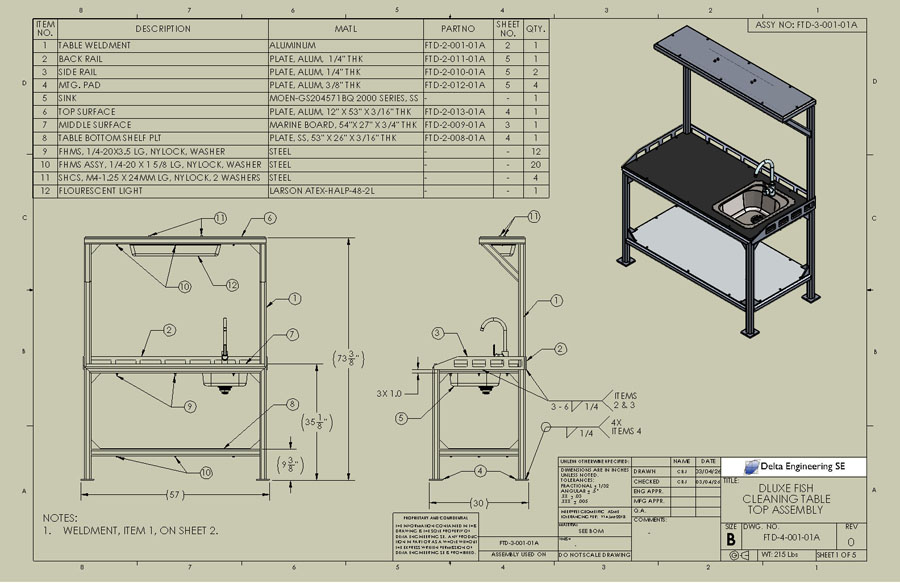

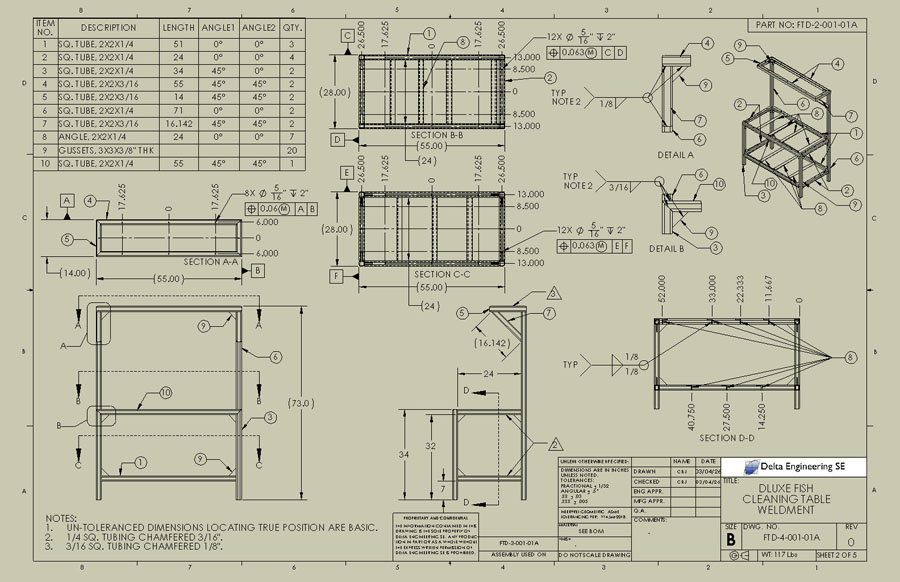

The SolidWorks Weldments application enables weldments to be created in the form of a single multibody part. A 3D sketch defines the basic weldment shape. Structural members are created along the lines of this 3D sketch, as well as gussets, and end caps. etc. To create a weldment similar to the weldment shown below for your company, we will need the overall shape, dimensions, desired structural members, and the weldment's load carrying requirement.
.
.
.
